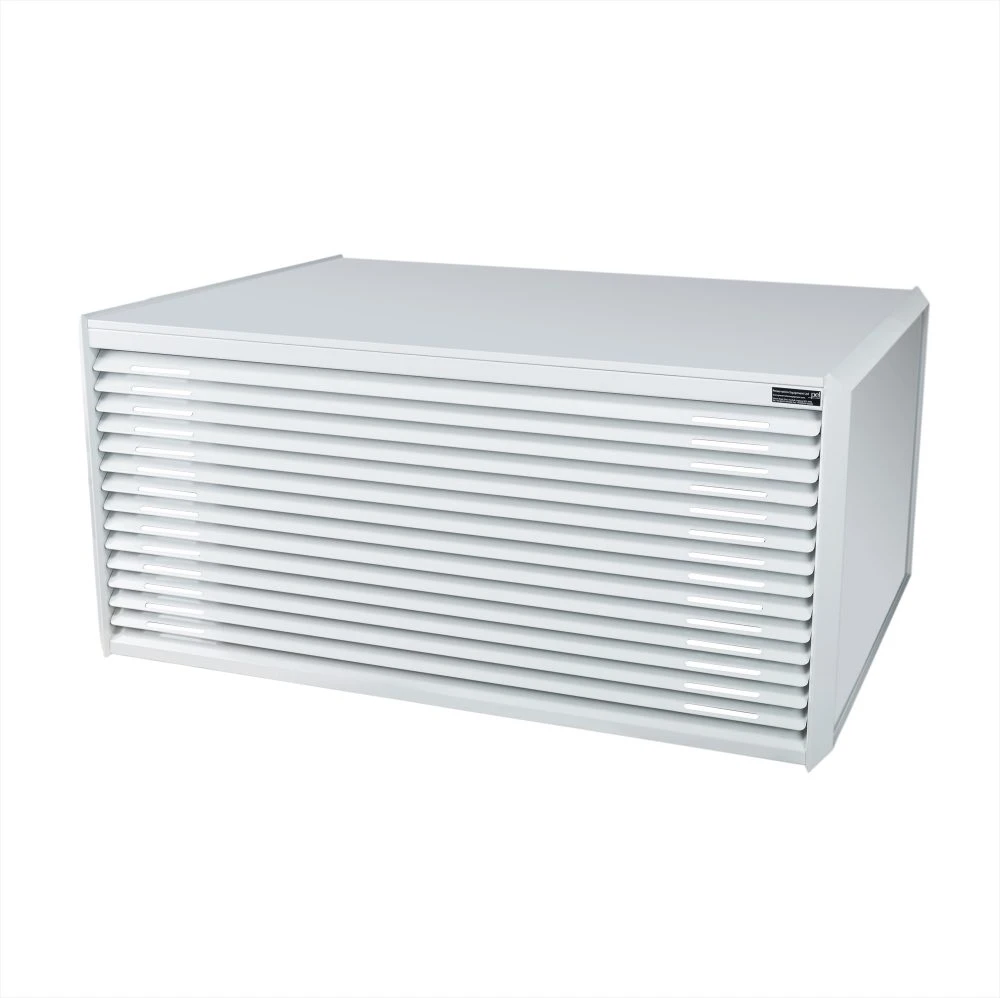

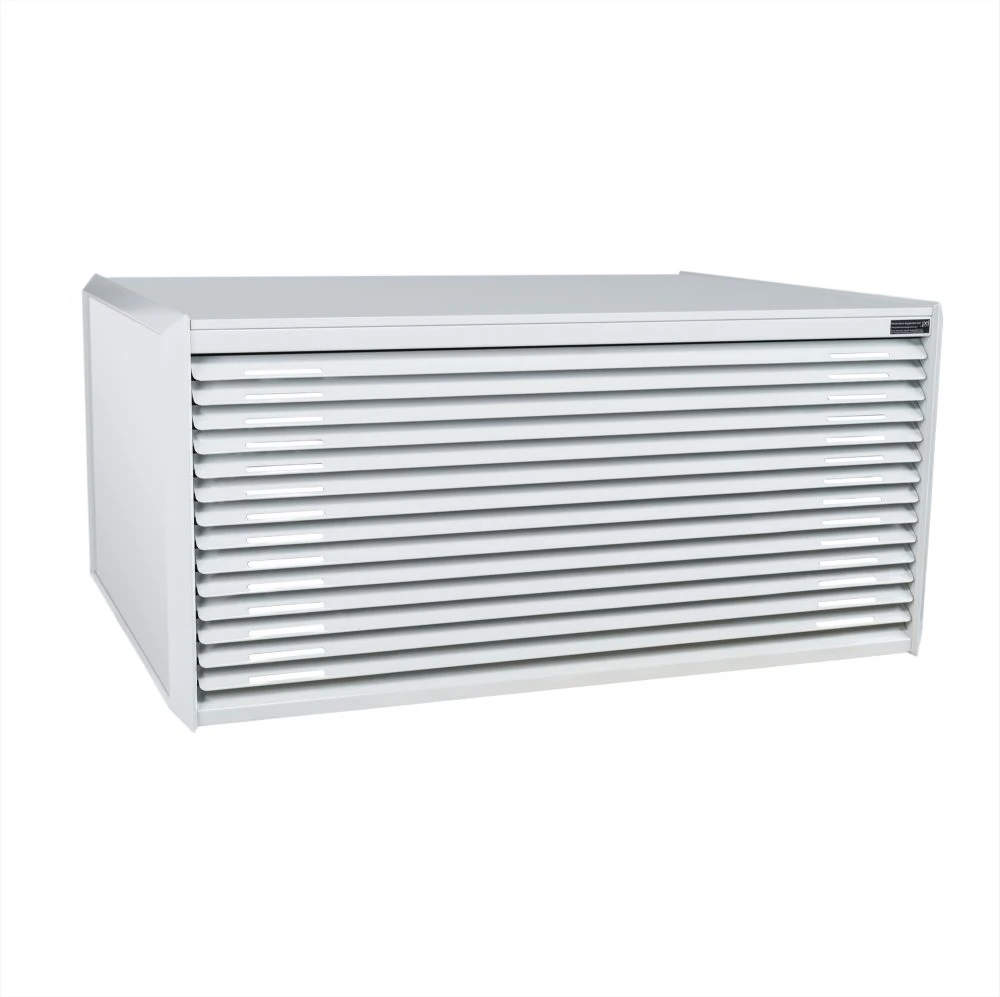

Horizontal Plan File Chest – 25mm Drawer Depth

Conservation quality plan chest drawer cabinets, archival quality suitable for Libraries, Museums and Archives who require high quality storage, for larger papers, textiles, charts, maps, posters and drawings.

The cabinet range is available with 25mm draw depth, the shallow drawer is especially useful when only a small amount of rare papers or textiles are placed in one drawer, maximising storage space. For deeper drawer cabinets see ‘recommended’ tab below.

---

Click on the image icon in the table below for individual cabinet and drawer dimensions.

---

Please contact us on +44(0) 1379 647400 if you have any questions regarding our cabinets.

---

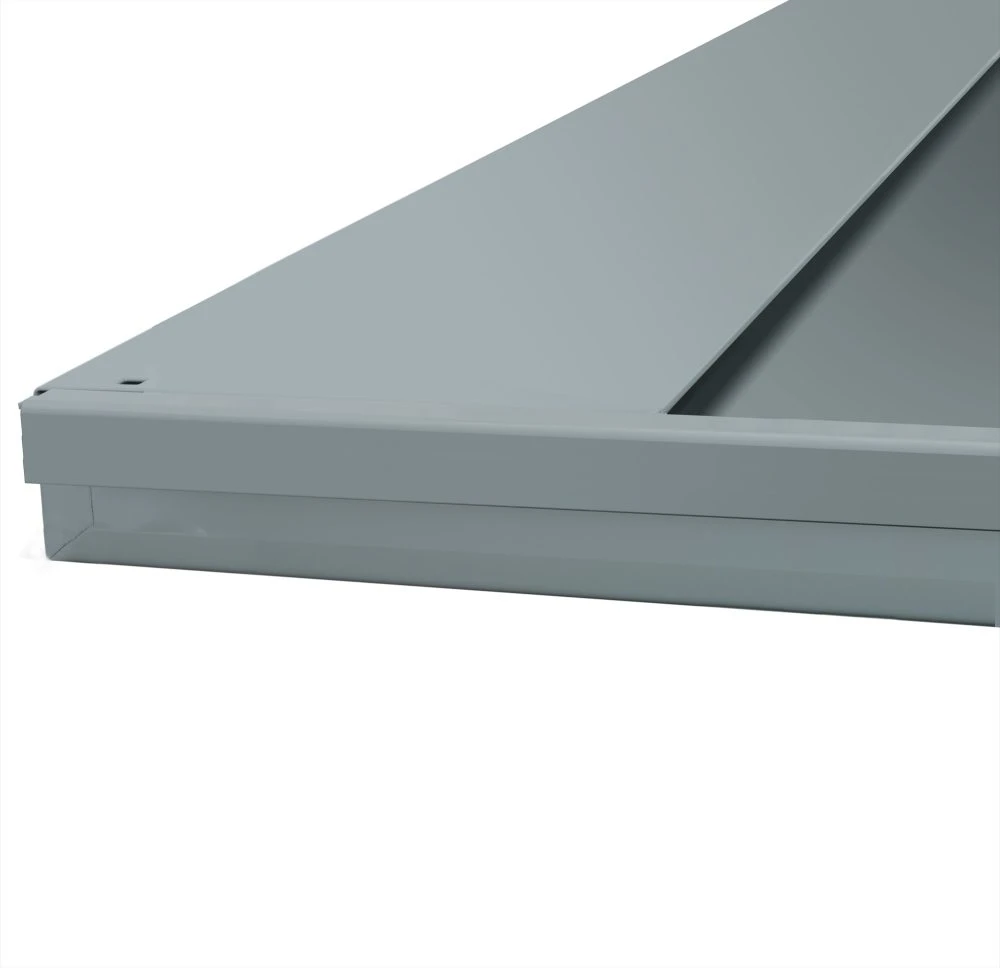

• Retaining channel – Click here to view at back of each drawer prevents charts, maps etc from curling upwards preventing damage when opening drawers
• High quality conservation quality powder coat paint which does not ‘off gas’ making the cabinet safe for archival storage
• Drawer loads up to 30Kg
• High quality all-steel precision engineered construction manufactured in UK
• Index card holder for easy referencing and full width handle

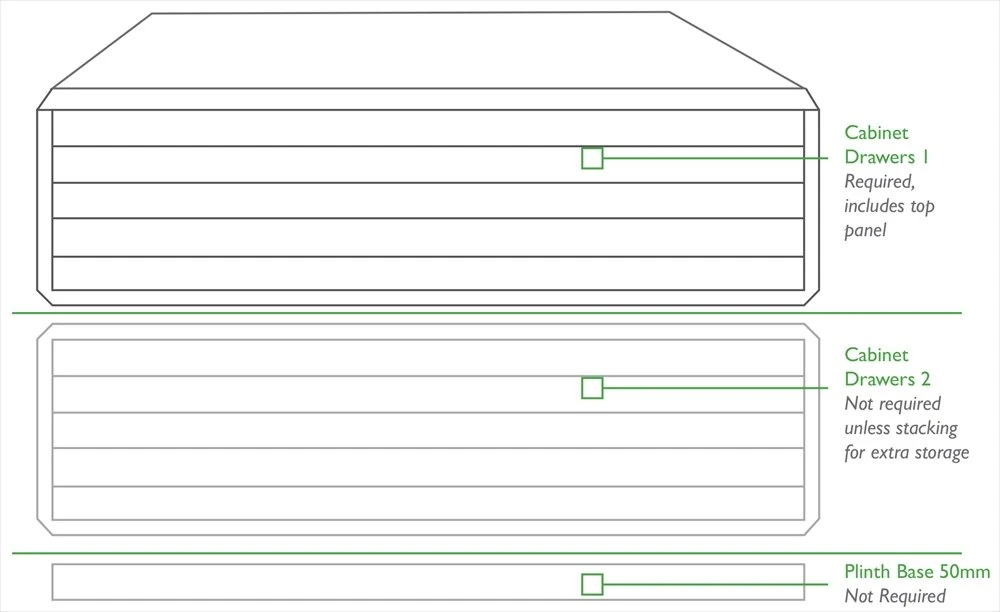

• Cabinets can be stacked on top of each other to maximise storage space
• Plan chests are available in your choice of RAL colours, one solid colour or mix drawer and frame colour

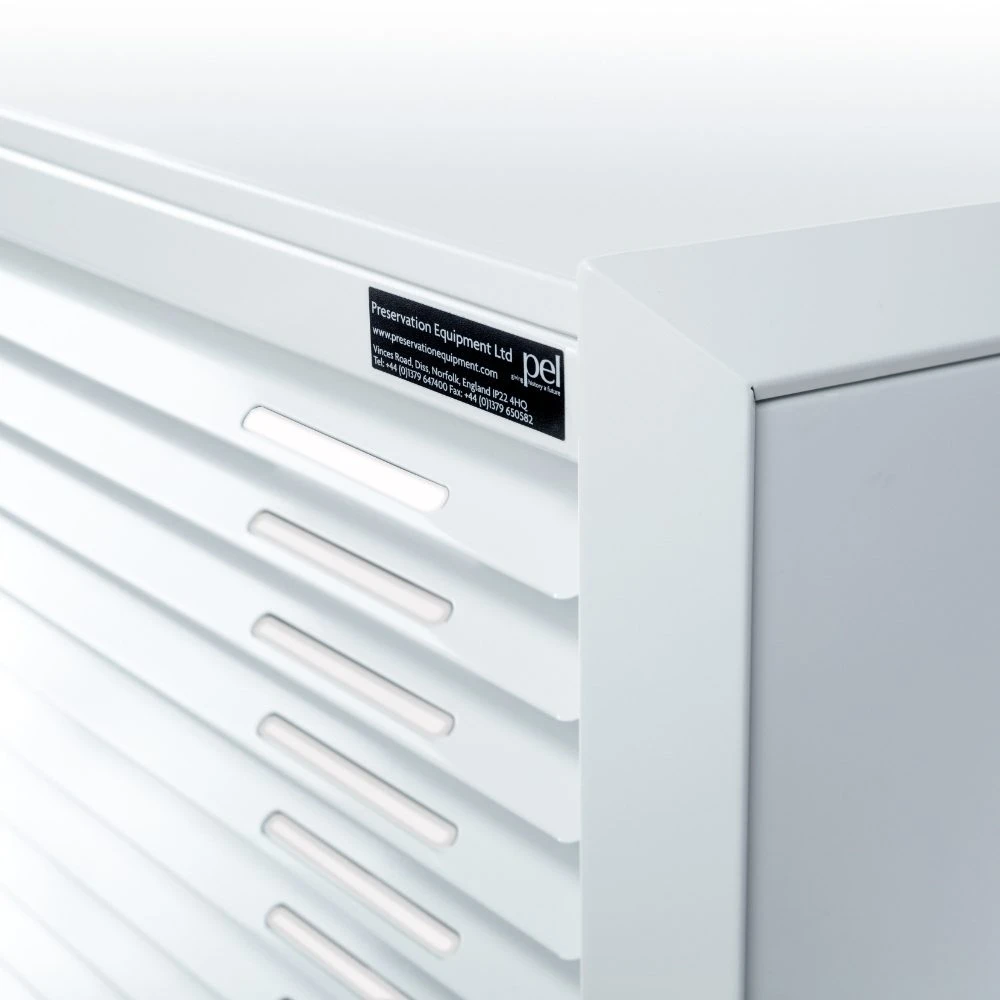

• Drawer fronts flush with front of cabinet, no edges to catch or snag
• Sizes to suit paper sizes, A2, A1, OS Maps, A0 and AQ
• Optional 2″ (50mm) high plinths (see image here) are available to raise cabinet off the ground (see ‘accessories to fit’ below)

See ‘Specification’ tab below ↓ for full cabinet dimensions and delivery details
